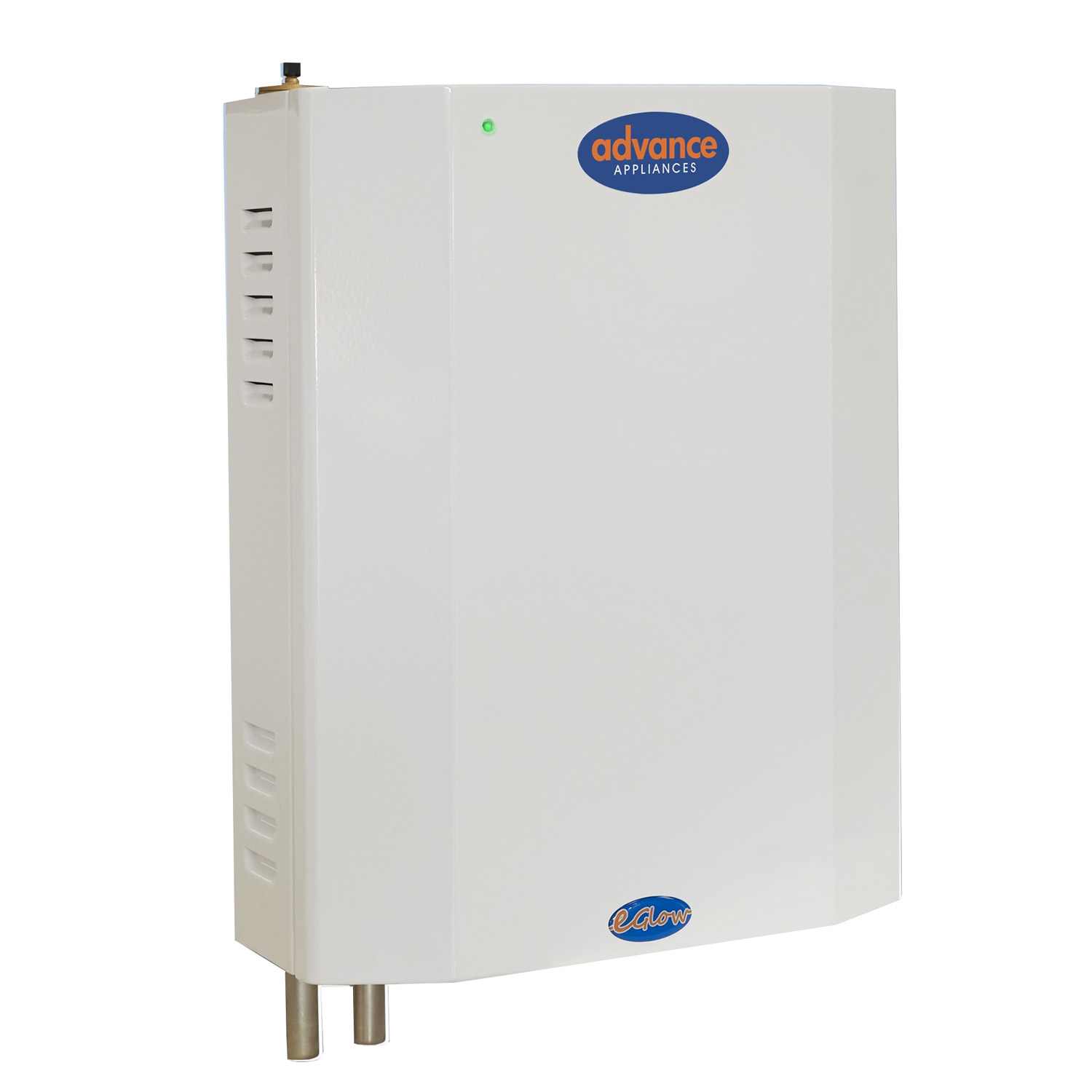

12kW Domestic Electric Flow Boiler from Advance Appliances
*Delivery to Mainland UK Only – Delivery in 2-5 working days *
The eGlow boiler is available in three output versions, 6kW, 9kW and 12kW and can be specified for standard central heating circuits with an 80 degree flow or underfloor circuits with a 60 degree flow.
The eGlow is intended for domestic central heating systems and can be connected to single phase domestic electricity supplies, please see overleaf for more information.
Advance eGlow boilers are compact and quiet in operation, require no fluing and can be located anywhere within the property.

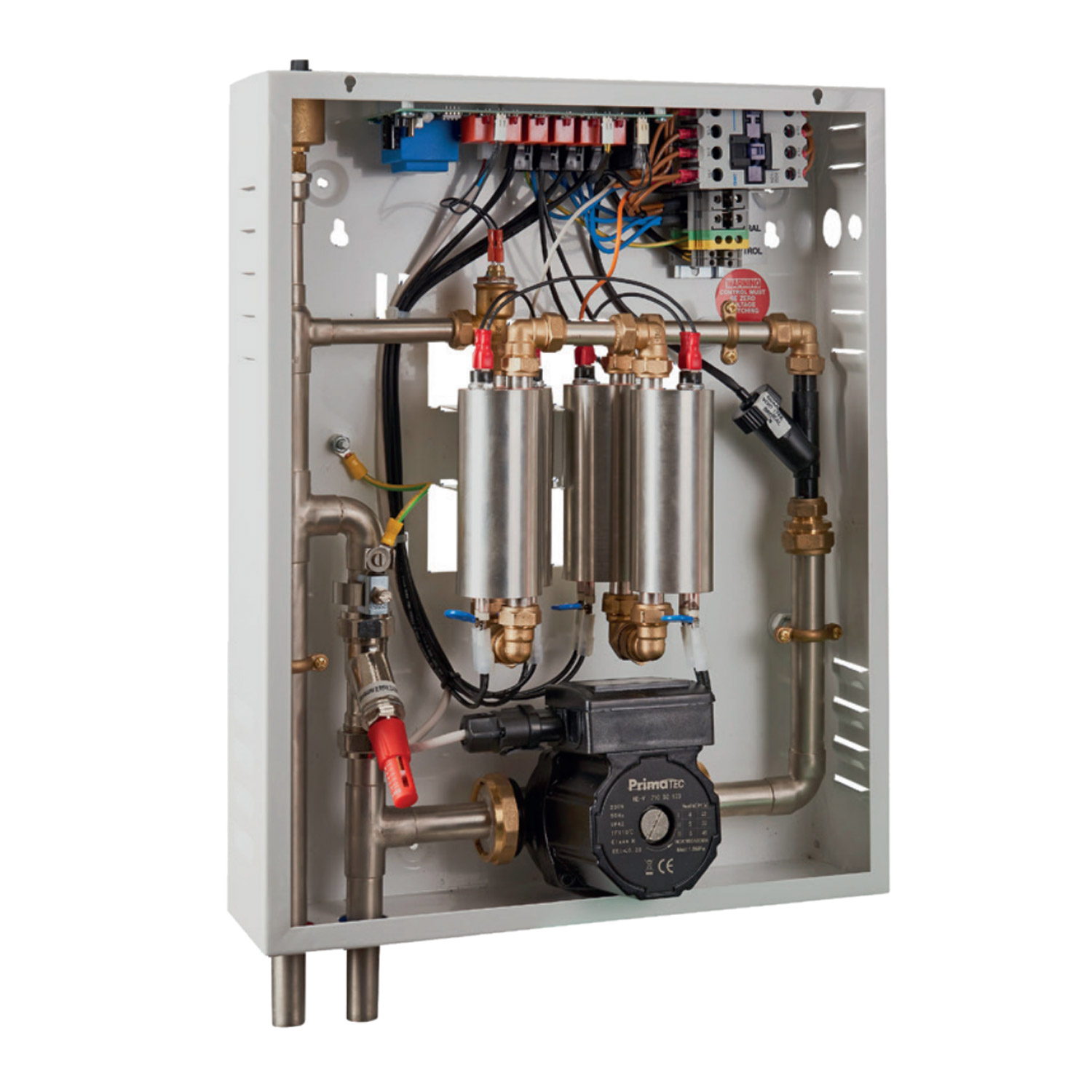

A pump is fitted in the eGlow making installation very straight forward.
The pump has an over run facility and there is an automatic by pass fitted. The eGlow can only be installed as a sealed system boiler.
Features and Benefits
- Three outputs – 6,9 and 12kW
- Fully modulating
- Underfloor heating version available
- A rated pump and by-pass fitted
- Sealed system operation
- No maintenance
- Overheat & dry run protected
- Wet central heating.
Specification

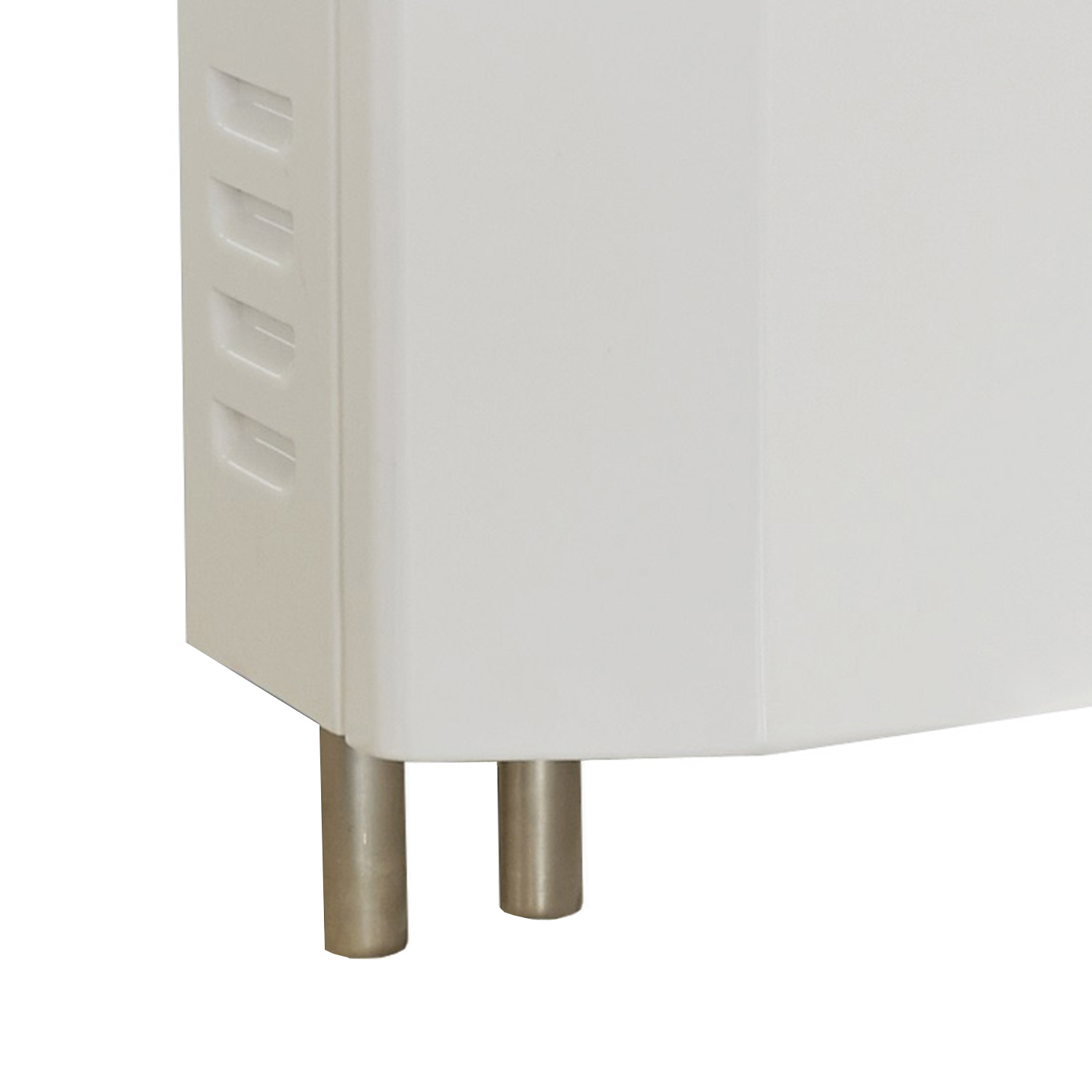

- Flow and return: 22mm bottom entry
- Static head min: 600mm
- Electricity supply: SP 240 VAC 50hz
- Current rating: 50 amps
- Protection: 63 amps
- Pump: A rated
- Pump setting: Auto
- Output temp (max): 80 °C
- Underfloor units output temp (max): 60 °C
- High limit temp control 2 stage: 90°C / 95°C
- Nom heat output: 40,000 BTU

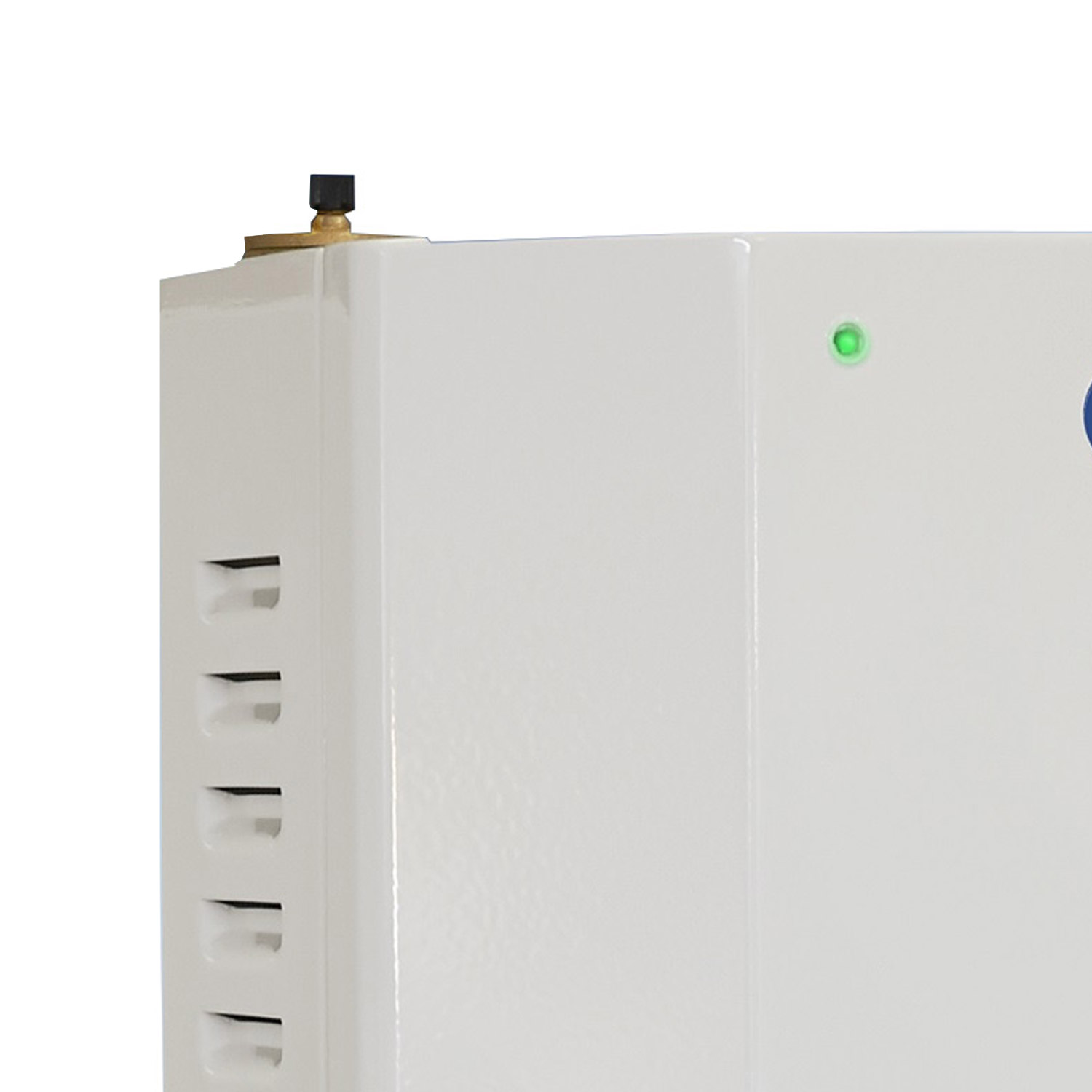

- Auto air vent: Fitted
- Pressure switch: Fitted
- Auto by pass: Fitted
- Min pressure cold (sealed system): 0.6 bar
- Max pressure cold (sealed system): 3 bar
- Heat exchangers: Stainless steel 3kW pods
- IPX rating: 1
- ERP Class: C
- Number of radiators: 8/10
Installation & Servicing Instructions:
Advanced Appliances eGlow Electric Flow Central Heating Boiler Data Sheet
Advanced Appliances eGlow Electric Flow Central Heating Boiler Installation Manual
