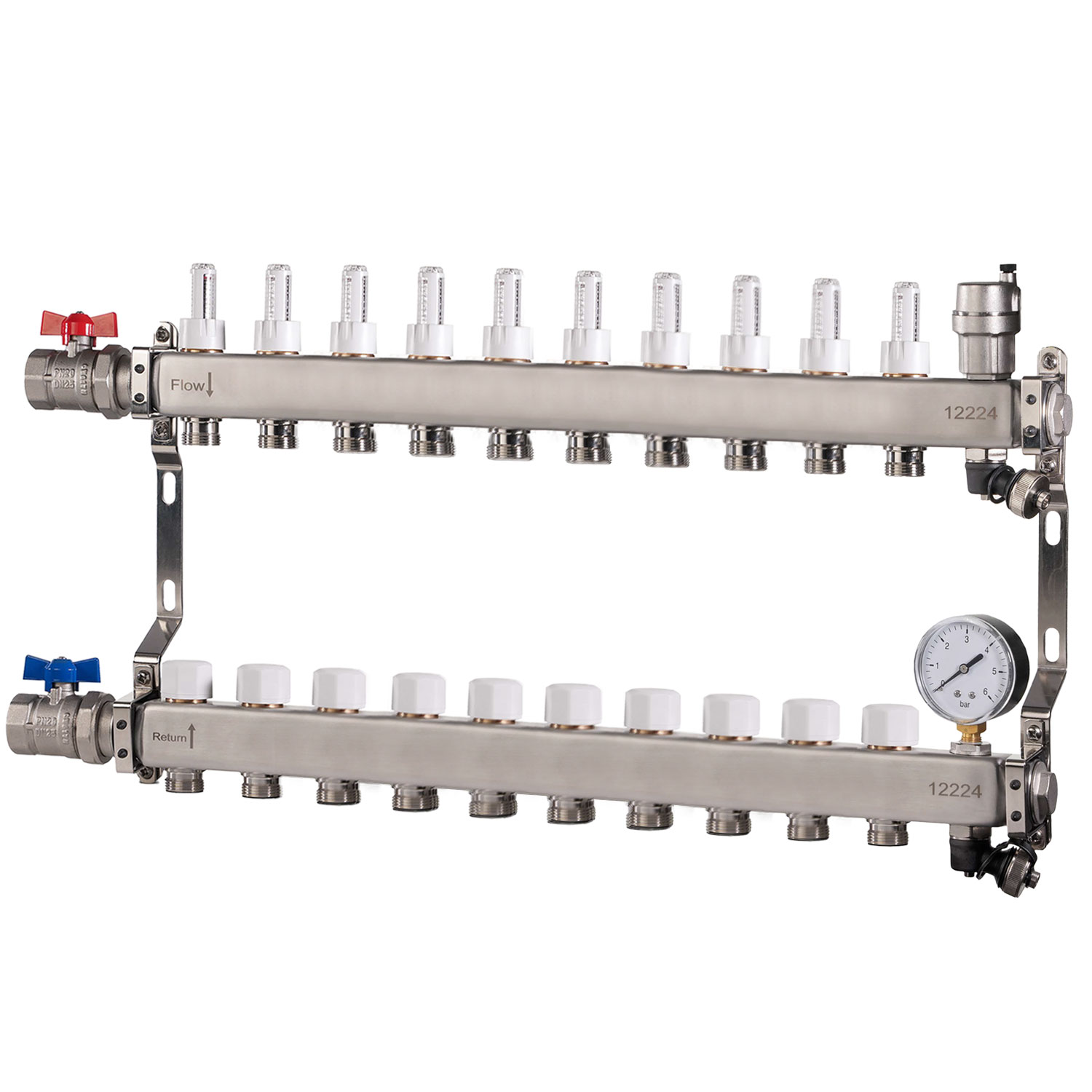

Reliance Stainless Steel 10 Port UFH Manifold with Ball Valves, Auto Air Vent & Pressure Gauge MANA453110

Reliance Stainless Steel 110 Port UFH Manifold with Ball Valves, Auto Air Vent & Pressure Gauge MANA453110

Reliance Stainless Steel Underfloor Heating Manifold with ball valves and integral auto air vent centralizes underfloor heating pipework efficiently. It distributes warm water through pipe circuits for even and comfortable heat distribution. Ideal for use with Reliance Valves wiring centres and UFH controls for independent zone control. Made from high-quality stainless steel, it includes pre-fitted wall brackets, vibration isolation mounts, and a range of port configurations to suit various heating needs.

Specifications:

• Ports: 10
• Material: Stainless Steel
• Valves: Red and blue 1″ brass ball valves for isolation
• Air Vent: Integral auto air vent
• Additional Features: Drain/fill valve, adjustable flow meters, pre-assembled flow rate indicators, Pressure Gauge
• Compatibility: Euroconus fittings for various pipe diameters and wall thicknesses (fittings sold separately)
• Control Option: Accepts Manifold Thermoelectric Head for remote control
• Application: Underfloor heating systems only

Features:

• High-performance stainless steel manifold
• Includes wall brackets and vibration isolation mounts for easy installation
• Red and blue 1″ brass ball valves for component isolation
• Integral auto air vent and drain/fill valve included
• Adjustable flow meters with pre-assembled flow rate indicators
• Integral Pressure Gauge
• Compatible with Euroconus fittings for versatile installation
• Supports remote control via Manifold Thermoelectric Head

Data Sheet Download:

Reliance Valves UFH Manifold Data Sheet
